US series

Small size,Great trust

Features

Compact size egg washer & grader

The US series is a compact mechanical egg grader that is fully capable of egg washing requirement and covers capacity ranges from 3,600 to 10,000 eggs per hour. Over 40 years of its history, the US series has been sold over 1,250 units to the customers in many nations and supporting their egg business. The US series egg grader requires simple operation and minimal maintenance to ensure its reliable performance for long years.

Capacity

US-36 3,600eggs/h
US-51 5,100eggs/h
US-100 10,000eggs/h

Characteristics

US-36

US-36 egg grader is combined with egg washer and single-row infeed section. The capacity is 3,600 eggs per hour and capable with 6 grades grading. The power source can be supplied from wall socket and system can be operated by one or two people.
UG-36 is available; it comes without egg washing section.

US-51

US-51 egg grader is combined with egg washer, drying fan and six-row infeed section. The capacity is 5,100 eggs per hour and capable with 7 grades grading. The power source can be supplied from wall socket and system can be operated by two people.
UG-51 can be built to order; it comes without egg washing and drying section.

US-100

US-100 egg grader is combined with egg washer, high-power drying fan, and six-row infeed section. The capacity is 10,000 eggs per hour and capable with 8 grades grading. The power source can be supplied from wall socket and system can be operated by two or three people.UG-100 can be built to order; it comes without egg washing and drying section.



Option




Egg Feeding Conveyor

Egg feeding conveyor enables maximum of 6-line egg feeding/loading at one time. It reduces the operational burden of egg feeding and make the egg inspection easier. Also, egg lifter is available to achieve better efficiency.
Compatible Models: US-36 (Egg Feeding Conveyor is a standard equipment for US-51 and US-100)

Egg Lifter

The egg lifter is available for US series egg grader. This optional equipment ensures easy operation for transferring eggs from trays to infeed section. The rubber cup unit is detachable, so very easy to clean.
Corresponding model :All models

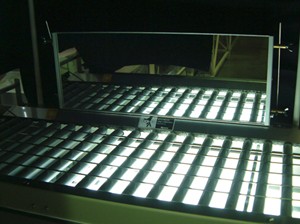

Egg Candling Booth

The egg candling booth is available for US series egg grader. This optional equipment allows operator to apply accurate inspection for eggs. The egg candling booth comes with candling mirror, light source, and blackout curtain.
Corresponding model :All models

UV Sterilizing Device

UV sterilizing is applied to the surface of the egg on the conveyor.This is a device with high disinfection effect by irradiating ultraviolet rays on an egg flowing through the conveyor and kill bacteria of the eggshell surface.
Corresponding model :All models

Injection Pump

Injection Pump is used to inject Sodium Hypochlorite to the egg washing water. Sodium Hypochlorite has a great efficiency on disinfection of bacteria. However, to avoid the corrosion of metal parts, it is necessary to rinse inside the machine.
Corresponding model :All models

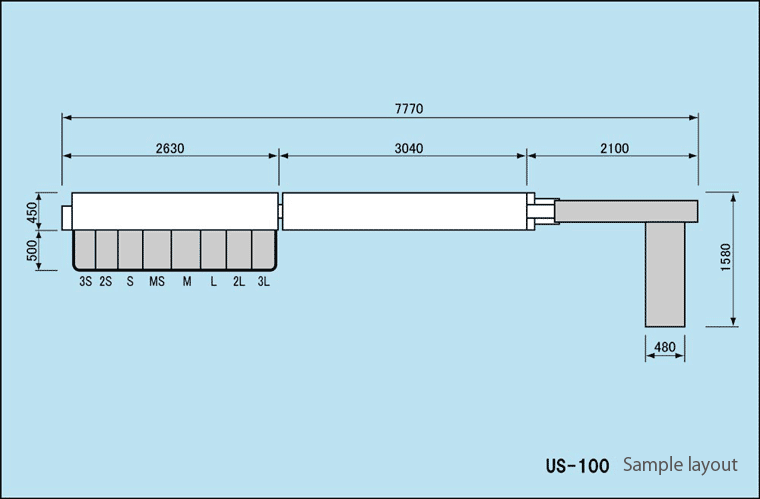

Sample layout

Specifications

Type
US-36
US-51
US-100
Processing speed
3,600eggs/h
5,100eggs/h
10,000eggs/h
Electric power
Single-Phase 100V 0.7kW
Single-Phase 100V 1.5kW
3-Phase 200V 3.4kW
Water supply
2L/min
4L/min
4L/min
Neither peripheral equipment nor optional equipment is included on the above specifications.Please contact our sales staff for details.
